Syro I

point

Fully Automated, Computer controlled Parallel Peptide Synthesizer, based on a one arm pipetting Robot.




The arm is equipped with a pipette tip that is connected to a dosing pump via a tube and a three-way valve. All of the reagents defined on the work area can be sampled by the arm and delivered to any chosen container on the work area. Additionally, the arm can take in a solvent from outside the work area via the three-way valve and also deliver it to any reachable container.

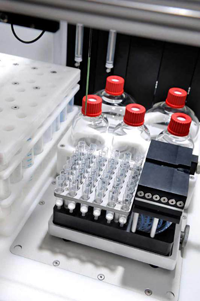

SYRO I is equipped with one type U-reactor block that can accept two, five and 10 ml reactors. An infinitely variable vortexer guarantees an optimal mixing of the reactants.
Digital injection pumps enable dosing with microliter precision and user-friendly software allows all technical possibilities of the robot to be easily implemented.
The modular construction offers great flexibility with respect to the number and size of the storage and reaction containers.
Optionally, all storage containers for reagents and reactors can be equipped with the capability to work under inert gas.





Now available with the new* Syro Heating Block option!

point

Overview



Syro I and Syro II peptide synthesizers are the perfect choice for demanding peptide synthesis applications. Digital syringe pumps enable exact dispensing of all reactants with microliter precision. Optimal mixing of the reactants is provided by a variable speed vortex mixer. This guarantees the best synthesis results in terms of yield and purity while minimizing waste and costs. The modular construction offers the greatest flexibility of reaction vessels and storage containers for amino acids and reagents.
Different reactor blocks with 24, 48 or 96 positions allow for parallel synthesis of peptides in a range from 1–300 μmol in each reaction vessel. The Syro I system is configured with one reactor block and the Syro II can be configured with two reactor blocks for maximum throughput and productivity.


syro-1_pic2_klein

syro1_pic_klein

syro1a

Biotage-Logo

Our reseller Biotage offers them a Worldwide service.
You can contact him in confidence.

© Multisyntech GmbH, All rights reserved

logo_png
  • Syro I spezification

    Spezification

    Syro I

    Automation

    Single robotic arm

    Liquid handling

    Two digital syringe pump with 5ml syringe

    U-Block

    One U-Typ Reactor Block 24 positions:
    24 positions  x  2ml  Reactors  -   synthesis scale   5 -   50Ámole
    24 positions  x  5ml  Reactors   -  synthesis scale 25 - 150Ámole
    24 positions  x 10ml Reactors   -  synthesis scale 50 - 300Ámole
    or
    One U-Typ Reactor Block 48 Positon:
    48 Position  x  2ml Reactors  -    synthesis scale  5 - 50Ámole

    Mixing

    Vortex Mixer for one Reactor block

    Reagenzien bottle

    2 x 500ml and 3 x 200ml

    Vacuum pump

    ME 2C NT

    Amino acid rack

    40 x 50 mL Falcon tubes

    Waste bottle

    1 x 10L  Nalgene bottle

    Equipment

    Includes Desktop PC, 19” Monitor, Printer and Syro XP software

    Dimensions (W x D x H)

    556mm  x  700mm    x  906mm
    22,5inch x 27.56inch x 35.67inch

    weight

    65kg

    Power requirements

    Synthesizer

    power

     EU:     230 VAC,  50Hz,        1.5 A
     USA:   120 VAC,  60Hz,        2.5 A
     JP:        100 VAC, 50/60Hz,   3.0 A

    Power requirements

    Vacuum Pump

    power

     EU:      230 VAC, 50Hz,         1.8 A
     USA:   120 VAC, 60Hz,          3,4 A
     JP:       100 VAC, 50/60Hz      3.4 A

  • optional

            Optional Accessories

    • Inert gas option for reagent containers, amino acid rack and reactor vials
    • Inert gas cover plates
    • Disposable polypropylene reactor vials
    • Cleavage and Transfer Workstation
    • Standalone vortex mixer for cleavage unit
    • Reactor blocks
    • Tip Synthesis Module
    • Now available with the new* Syro Heating Block(s) option!
  • assecories

    Part No.

    Description

    S006VO002

    Vortex Mixer, Stand-Alone, Holds 2-Reactor Blocks

    S011TU024

    Transfer Unit 24 position

    S011TU048

    Transfer Unit 48 position

    S011TU424

    Transfer Unit 24- and 48 positions

    S012TS001

    Tip Synthesis

    Z002BR024

    U-Block rack 24 position for 2 mL reactors

    Z002IC024

    Inert Gas Cover Plate, 24 x 2-mL reactor

    Z002IC048

    Inert Gas Cover Plate, 48 x 2-mL reactor

    Z004IC096

    Inert gas cover plate 96 pos.for Tip-reactors

    Z005BR024

    U-Block rack 24 position for 5 mL reactors

    Z005IC024

    Inert Gas Cover Plate, 24x5-mL reactors

    Z010IC024

    Inert Gas Cover Plate, 24x10-mL reactors

    Z024AK000

    Empty Head, 24-Position

    Z024UB050

    U-Block Reactor, 24 x 2-5-10mL

    Z048AK000

    Empty Head, 48-Position

    Z048UB020

    U-Block Reactor, 48 x 2mL

    Z102RF115

    Reagent brown glass bottle 200 ml for Syro I/Syro Wave with inert gas

    Z102RF127

    Reagent brown glass bottle 200 ml for Syro I/Syro Wave (no IG) or Syro II w/ IG

    Z102RF137

    Reagent brown glass bottle 200 ml for Syro II (no inert gas)

    Z105RF115

    Reagent brown glass bottle 500 ml for Syro I/Syro Wave with inert gas

    Z105RF127

    Reagent brown glass bottle 500 ml for Syro I/Syro Wave (no IG) or Syro II w/ IG

    Z105RF137

    Reagent brown glass bottle 500 ml for Syro II (no inert gas)

  • consumables

    Part No

    Description

    V000LS100

     Luer Stoppers - Peptide synthesis

     V004PE050

     PP-Reactor Tip, 0.4 mL with PE Frit (96/pk) - Peptide synthesis

     V020TF051

     PP-Reactor, 2 mL, with PTFE frit

     V050ST050

     Plungers for 5 ml reactor vials

     V050TF062

     PP-Reactor, 5mL, with PTFE Frit (100/pk) - Peptide synthesis

     V100TF073

     PP-Reactor, 10 mL, with PTFE frit

     V100TF086

     PP-Reactor, 10mL, with PTFE Frit (100/pk) - Peptide synthesis

     V100TF100

     Plunger, for 10 mL Glass Reactor - Peptide synthesis

  • heating block

        * NEW Heating Block System

    Application Heating Block

    S015HT021

    Heating Block (24 position) Syro I for  2ml Reactor

    S015HT051

    Heating Block (24 position) Syro I for  5ml Reactor

    S015HT101

    Heating Block (24 position) Syro I for 10ml Reactor

    S01HT201

    Heating Block (12 position) Syro I for 20ml Reactor

    Empty head

    Z024AK000

    Empty Head, 24-Position

    Z012AK000

    Empty Head, 12-Position

    Heating plate

    Z024HP020

    Heating plate (24 position) for 2ml Reactors

    Z024HP050

    Heating plate (24 position) for 5ml Reactors

    Z024HP100

    Heating plate (24 position) for 10ml Reactors

    Z012HP020

    Heating plate (12 position) for   2ml Reactor

    Z012HP050

    Heating plate (12 position) for   5ml Reactor

    Z012HP100

    Heating plate (12 position) for 10ml Reactor

    Z012HP200

    Heating plate (12 position) for 20ml Reactor
